Demystifying AJAX Callback Commands

Follows naming convention [CommandName]Command(.php)
Class that implements CommandInterface
Defines a 'render' method
- Returns an associative array
- Contains element with key of 'command'
- 'Command' value is name of JavaScript method

Anatomy of a Callback Command: PHP


use Drupal\Core\Ajax\CommandInterface;

// An AJAX command for calling  [commandName]() JavaScript method.
class [CommandName]Command implements CommandInterface {

  // Implements Drupal\Core\Ajax\CommandInterface:render().
  public function render() {
    return array(
      'command' => '[commandName]', // Name of JavaScript Method.
      // other request arguments...
    );
  }
}
            [CommandName]Command.php

[CommandName]Command.php

Callback command classes need to implement CommandInterface (lines #1 & #4). Must define a 'render' method (lines #7 - #12), that returns an associative array. Associative array must contain an element with the key of 'command' and a vlaue that is a name of the javascript method. Additional arguments are passed as response data.

Callback Commands: Client Side

Follows naming convention [commandName]
Method attached to 'Drupal.AjaxCommands.prototype' object
Takes 3 arguments
- ajax
- response
- status

Anatomy of a Callback Command: JavaScript


/**
 * [commandName description]
 *
 * @param {Drupal.Ajax} [ajax]
 * @param {object} response
 * @param {number} [status]
 */
Drupal.AjaxCommands.prototype.[commandName] = function(ajax, response, status){

  // Custom javascript goes here ...

}

Callback Command needs to be attached as a method to the Drupal.AjaxCommands.prototype object (line #8). Command accepts three arguments and is a wrapper for additional javascript.

Callback Commands Are...

Functions returned and invoked by all Ajax requests
PHP Classes that implement CommandInterface
Methods attached to 'Drupal.AjaxCommands.prototype'

How to Use Callback Commands

Credit: http://www.nuskool.com/learn/wp-content/uploads/2016/01/star-wars-ron-1.gif

A page with an image and a link to call an ajax request

Create a page with a custom module that outputs a page with a description, link and image. Want to use an ajax request when the link is clicked to remove the image.

Attach Drupal Ajax library to the requesting page


namespace Drupal\remove_example\Controller;
use Drupal\Core\Controller\ControllerBase;

class RemoveExampleController extends ControllerBase {

  // Return output for displaying an image and ajax link for removing it.
  public static function demo() {
    $output['description']['#markup'] = '' . t('The following is an example of using the remove ajax callback command.') . '';
    // ...
    // Attach the ajax library.
    $output['#attached']['library'][] = 'core/drupal.ajax';
    // Return render array
    return $output;
  }
  // ...
}
            remove_example/src/Controller/RemoveExampleController.php

Pages that want to use Ajax need to include the ajax library. On line #11 attaching the core Drupal Ajax library to the render array for the page.

Attach commands to an AjaxResponse object using 'addCommand'


namespace Drupal\remove_example\Controller;
use Drupal\Core\Controller\ControllerBase;
use Drupal\Core\Ajax\AjaxResponse;
use Drupal\Core\Ajax\RemoveCommand;

class RemoveExampleController extends ControllerBase {
  // ...
  /**
   * Callback method for removing image from 'remove-example' page.
   *
   * @return \Drupal\Core\Ajax\AjaxResponse|mixed
   */
  public static function removeImage() {
    // Create an Ajax Response object.
    $response = new AjaxResponse();
    // Add a remove command.
    $response->addCommand(new RemoveCommand('#example_remove_wrapper'));
    // Return the response object.
    return $response;
  }
}
            remove_example/src/Controller/RemoveExampleController.php

Classes used for Ajax requests need to include needed classes (line #3, Line #4). Callback method needs to return an ajax command (line #14) and attach commands using 'addCommand' method (line #16).

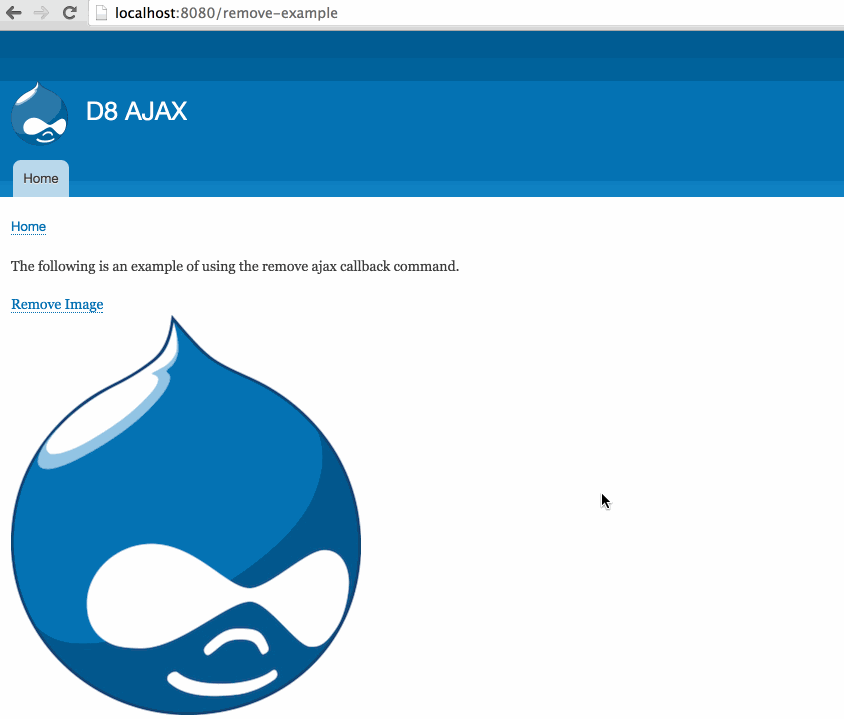

Example of using the remove callback command. Link triggers ajax request which returns response with 'remove' command targeting image id.

To Use Callback Commands...

Attach Drupal Ajax library to the requesting page
Create callback method that returns AjaxResponse
Attach commands to AjaxResponse object with 'addCommand'

Creating Custom Callback Commands

Credit: https://www.reddit.com/r/reactiongifs/comments/3a8akf/my_cats_reaction_when_i_leave_home

Custom Callback Commands: PHP

Follow naming convention [CommandName]Command(.php)
Implement CommandInterface
- Define a 'render' method
- Return an associative array with 'command' element
Place in 'src/Ajax/' directory of module

Define a class that implements CommandInterfaced


namespace Drupal\remove_example\Ajax;

use Drupal\Core\Ajax\CommandInterface;
// An AJAX command for calling the jQuery slideUp() and remove() methods.
class SlideRemoveCommand implements CommandInterface {
  // Constructs an SlideRemoveCommand object.
  public function __construct($selector, $duration = NULL) {
    $this->selector = $selector;
    $this->duration = $duration;
  }
  // Implements Drupal\Core\Ajax\CommandInterface:render().
  public function render() {
    return array(
      'command' => 'slideRemove',
      'selector' => $this->selector,
      'duration' => $this->duration,
    );
  }
}
            remove_example/src/Ajax/SlideRemoveCommand.php

remove_example/src/Ajax/SlideRemoveCommand.php

An example of creating a custom 'SlideRemove' callback command PHP Class. Class follows naming conventions and implements CommandInterface (line #5). Defines a render method (line #12), which returns an associative array with a 'command' keyed element. (lines #13 - #17).

Custom Callback Commands: JavaScript

Follow naming convention [commandName]
Attach method to 'Drupal.AjaxCommands.prototype' object
- Accept three arguments: ajax, response & data
Add JavaScript to a custom library

Attach a method to 'Drupal.AjaxCommands.prototype' object


(function ($, window, Drupal, drupalSettings) {
  'use strict';
  // Command to slide up content before removing it from the page.
  Drupal.AjaxCommands.prototype.slideRemove = function(ajax, response, status){
    var duration = response.duration ? response.duration : "slow";

    $(response.selector).each(function() {
      $(this).slideUp(duration, function() {
        $(this).remove();
      });
    });
  }
})(jQuery, this, Drupal, drupalSettings);
            remove_example/js/ajax.js

An example of creating a custom 'slideRemove' callback command javascript method. Attached to 'Drupal.AjaxCommands.prototype' object and accepts three arguments (line #4). Uses response data for additional javascript functionality (lines #5 - #13).

Add JavaScript to a custom library


remove-example:
  version: VERSION
  js:
    js/ajax.js: {}
  dependencies:
    - core/drupal.ajax
            remove_example.libraries.yml

remove_example.libraries.yml

Javascript file that contains custom 'slideRemove' command is added to a library deffinition (lines #3 - #4). Add core Drupal Ajax library as a dependency so that it is included (lines #5 - #6).

To Create Custom Callback Commands...

Use a custom module
Define classes that implements CommandInterface
Attach JavaScript method(s) to 'Drupal.AjaxCommands.prototype'

Using Custom Callback Commands

Credit: http://greatestgifsofalltime.tumblr.com/post/22262851765/greatest-magician-in-the-world

Example of using the remove callback command. Link triggers ajax request which returns response with 'remove' command targeting image id.

Attach custom library to the requesting page


namespace Drupal\remove_example\Controller;
use Drupal\Core\Controller\ControllerBase;

class RemoveExampleController extends ControllerBase {

  // Return output for displaying an image and ajax link for removing it.
  public static function demo() {
    $output['description']['#markup'] = '' . t('The following is an example of using the remove ajax callback command.') . '';
    // ...
    // Attach custom Ajax command library.
    $output['#attached']['library'][] = 'remove_example/remove-example';
    // Return render array
    return $output;
  }
  // ...
}
            remove_example/src/Controller/RemoveExampleController.php

Custom Javascript library needs to be included on requesting page, so that methods are attached. Attaching library to render array on line #11.

Attach commands to AjaxResponse object with 'addCommand'


namespace Drupal\remove_example\Controller;
use Drupal\Core\Controller\ControllerBase;
use Drupal\Core\Ajax\AjaxResponse;
use Drupal\Core\remove_example\SlideRemoveCommand;

class RemoveExampleController extends ControllerBase {
  // ...
  /**
   * Callback method for removing image from 'remove-example' page.
   *
   * @return \Drupal\Core\Ajax\AjaxResponse|mixed
   */
  public static function removeImage() {
    // Create an Ajax Response object.
    $response = new AjaxResponse();
    // Add a remove command.
    $response->addCommand(new SlideRemoveCommand('#example_remove_wrapper'));
    // Return the response object.
    return $response;
  }
}
            remove_example/src/Controller/RemoveExampleController.php

Like core callback commands, custom command classes have to be included in callback controller (line #4) and added to AjaxResponse in callback method (line #17).

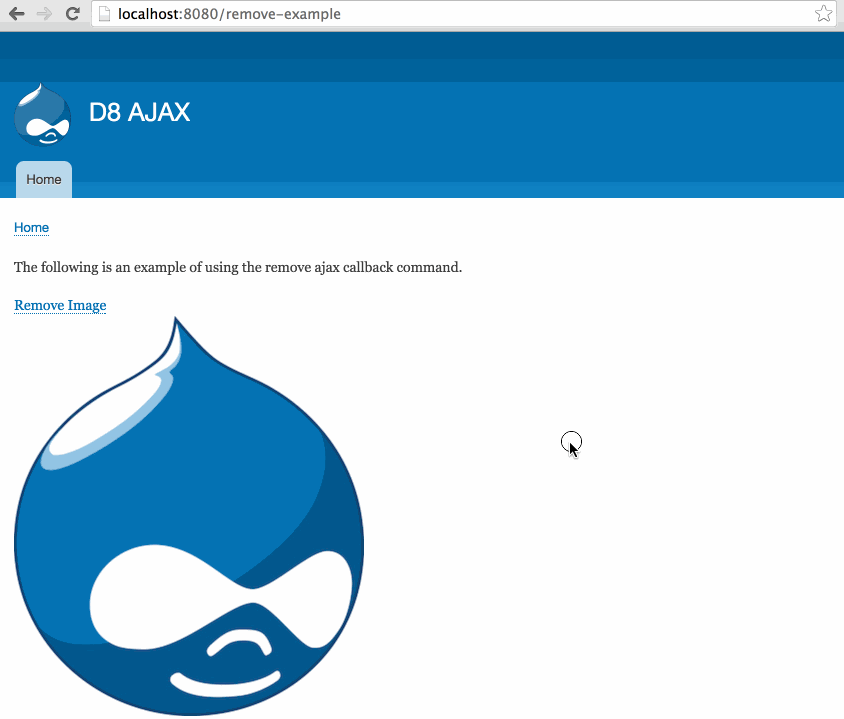

Example of using the custom slideRemove callback command. Link triggers ajax request which returns response with 'slideRemove' command targeting image id.
